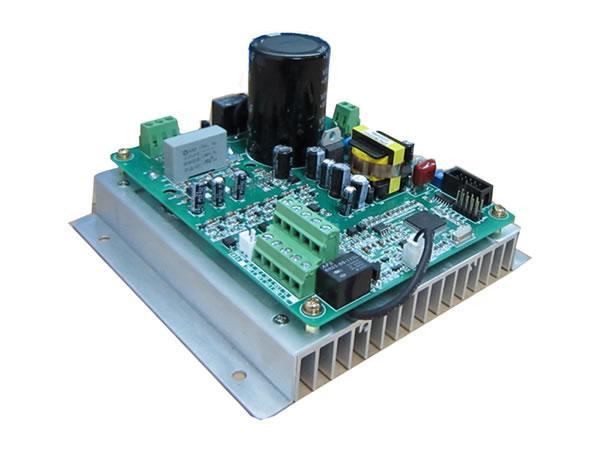

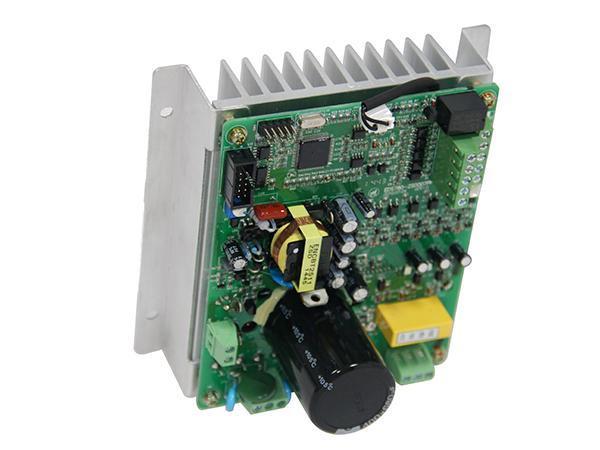

EDS780 Single Board Inverter

  • EDS780 Single Board Inverter
  • EDS780 Single Board Inverter

Features
1. Single board installation design, specially deisgned for equipment with strict size requirements
2. Fanless design, can be applied for environements with high concentrations of dust and particles in the air
3. Optical isolation control signals to reduce electromagnetic interference, and ensure electrical safety
4. Adopt space voltage vector SVPWM control; effectively optimize the output voltage characteristics

Product Model
Inverter Type Rated Power(KVA) Rated Output
Current(A) 		Adapted
Motor(KW)
EDS780-2S0007 1.8 4.7 0.75
Parameters
Item Item description
Input Rating volt., frequency Single phase 220V, 50Hz/60Hz
Allowed work volt. range Single phase voltage: 140V~260V
Output Voltage 220V grade: 0~220V(no more than input volt.)
Frequency 0Hz-400Hz
Over loading capacity 230% of rating current
Control Performance Control mode Optimum space voltage vector SVPWM
Speed regulation range 1:100
Start-up torque 150% of rating torque at low frequency
Running speed stable state precision ≤±0.5% of rating synchronous speed
Frequency precision Digital setting: max. frequency×±0.01%; analog setting:
Max. frequency×±0.5%
Frequency Resolution Analog setting 0.1% of max frequency
Digital setting 0.01Hz

Application
The EDS780 easy-fit single PCBA board inverter is suitable for food processing, textiles, cables, packaging and other industrial applications.
