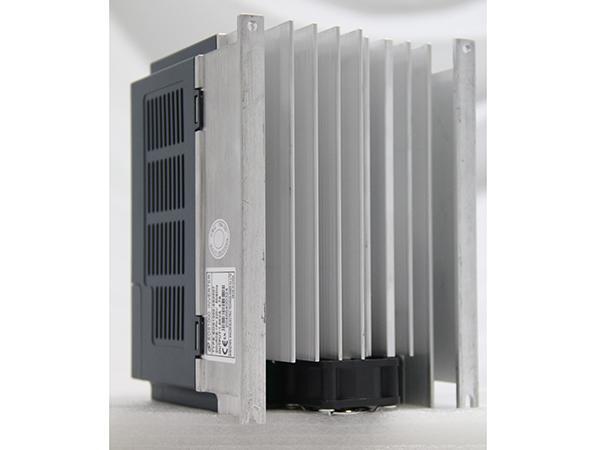

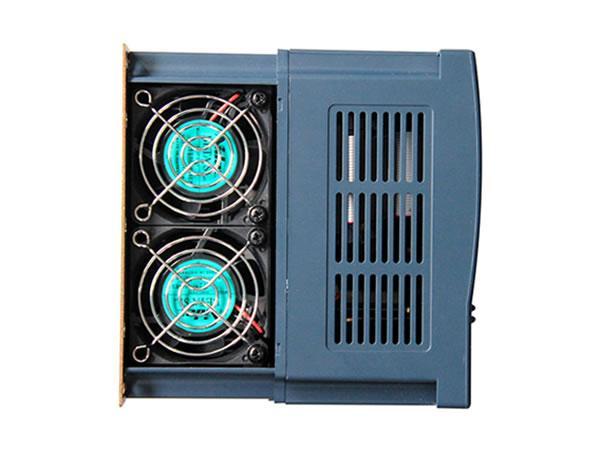

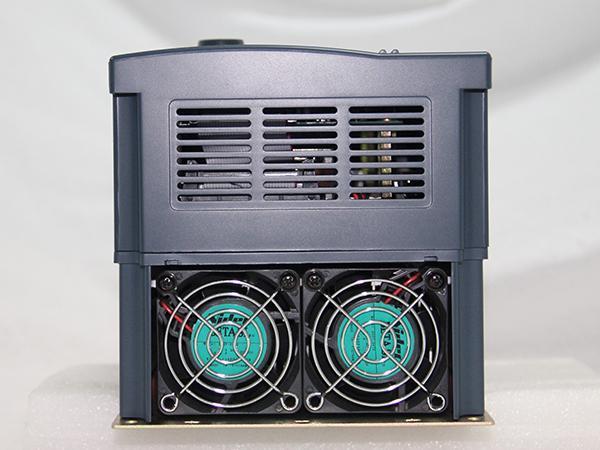

EDS1000 Series Variable Frequency Drive

  • EDS1000 Series Variable Frequency Drive
  • EDS1000 Series Variable Frequency Drive
  • EDS1000 Series Variable Frequency Drive
  • EDS1000 Series Variable Frequency Drive
  • EDS1000 Series Variable Frequency Drive

Features
1. Space voltage vector PWM control
2. Compact design for versatile installations
3. Automatic voltage regulation ( AVR) and automatic current limiting function
4. Built-in PID controller, can realize constant pressure (flux etc.) “One drive multiple device” control (Optional Function)
5. 16 (Maximum) section speed control and simple spinning traverse function
6. 0-20KHz pulse input-output interface is convenient for making up digital closed-loop control systems
7. RS485 communication interface can be built inside the inverter to realize centralized control and perform auxiliary consecutive action control easily

Product Model
Input Voltage Inverter type Rated Output Current(A) Adaptable Motor (KW)
3 phase 220V EDS1000-2T0007 4 0.75
EDS1000-2T0015 7 1.5
EDS1000-2T0022 10 2.2
EDS1000-2T0037 15 3.7
EDS1000-2T0055 24 5.5
EDS1000-2T0075 32 7.5
Single phase 220v EDS1000-2S0004 3 0.4
EDS1000-2S0007 4.7 0.75
EDS1000-2S0015 7.5 1.5
EDS1000-2S0022 10 2.2
EDS1000-2S0037 15 3.7
3 phases 380v EDS1000-4T0007G/0015P 2.3/3.7 0.75/1.5
EDS1000-4T0015G/0022P 3.7/5 1.5/2.2
EDS1000-4T0022G/0037P 5/8.5 2.2/3.7
EDS1000-4T0037G/0055P 8.5/13 3.7/5.5
EDS1000-4T0055G/0075P 13/17 5.5/7.5
EDS1000-4T0075G/0110P 17/25 7.5/11
EDS1000-4T0110G/0150P 25/33 11/15
EDS1000-4T0150G/0185P 33/39 15/18.5
EDS1000-4T0185G/0220P 39/45 18.5/22
EDS1000-4T0220G/0300P 45/60 22/30
EDS1000-4T0300G/0370P 60/75 30/37
EDS1000-4T0370G/0450P 75/91 37/45
EDS1000-4T0450G/0550P 91/112 45/55
EDS1000-4T0550G/0750P 112/150 55/75
3 phases 690v EDS1000-7T0110G/0150P 15/18 11/15
EDS1000-7T0150G/0185P 18/22 15/18.5
EDS1000-7T0185G/0220P 22/28 18.5/22
EDS1000-7T0220G/0300P 28/35 22/30
EDS1000-7T0300G/0370P 35/45 30/37
EDS1000-7T0370G/0450P 45/52 37/45
EDS1000-7T0450G/0550P 52/63 45/55
EDS1000-7T0550G/0750P 63/86 55/75
EDS1000-7T0750G/0900P 86/98 75/90
EDS1000-7T0900G/1100P 98/121 90/110
EDS1000-7T0110G/1320P 121/150 110/132
EDS1000-7T0132G/1600P 150/175 132/160
EDS1000-7T0160G/2000P 175/215 160/200
EDS1000-7T0200G/2200P 215/235 200/220
Parameters
Item Item description
Input Rating volt., frequency 1 phase 220V grade, 1 phase 220V ,50Hz/60Hz; 3 phase 220V grade, 3 phase 220V ,50Hz/60Hz; 3 phase 380V grade, 3 phase 380V ,50Hz/60Hz; 3 phase 690V grade, 3 phase 690V ,50Hz/60Hz.
Allowed work volt. range 1 phase 220V grade: 200V~260V; 3 phase 220 V grade: 200V~260V; 3 phase 380 V grade: 320V~460V; 3 phase 690 V grade: 586V~760V;
Output Voltage 220V grade: 0~220V; 380V grade: 0~380V; 690V grade: 0~690V;
Frequency 0Hz-400Hz
Over loading capacity G type: 150% of rating current for1 minute, 200% of rating current for 0.5 second; P type: 120% of rating current for 1 minute;
Control performance Control mode Speed sensorless slip vector control, open loop V/F control
Speed regulation range 1: 100
Start-up torque 150% of rating torque at 1 Hz frequency
Running speed stable state precision ≤±0.5% of rating synchronous speed
Frequency precision Digital setting: max. frequency×±0.01%;analog setting: max.frequency×±0.5%
Frequency resolution Analog setting 0.1% of max. frequency
Digital setting precision : < 100Hz 0.01Hz; ≥100Hz: 0.1Hz
Exterior impulse 0.5% of max. frequency
Torque boost Automatic torque boost, manual torque boost 0.1%~12.0%
V/F curve (volt. frequency characteristic) Set rating frequency randomly at range of 5~400Hz, can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3 and user-defined V/F in total 5 kinds of curve
Accelerating decelerating curve 2 modes: straight line accelerating decelerating and S curve accelerating decelerating; 7 kinds of accelerating decelerating time (unit minute/second can be optioned), max. time 6000 minutes.
Brake Power consumption brake Interior or exterior brake resistance. 690 V grade haven't build-in brake unit .
DC brake Optional start-up and stop, action frequency 0~15Hz, action volt. 0~15%, action time 0~20.0 s
Jog Jog frequency range: 0.50Hz~50.00Hz; jog accelerating decelerating time 0.1~60.0s can be set
Multisection speed running Realized by interior PLC or control terminal
Interior PID controller Be convenient to make closed-loop system
Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
Automatic volt. regulation (AVR) Can keep constant output volt. When power source voltage varies.
Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
Running function Running order specified channel Key pad specified, control terminal specified, serial port specified.
Running frequency specified channel Digital provision, analog provision, impulse provision, serial port provision, combined provision, can be switched at any time by kinds of method.
Pulse output channel Impulse square wave signal output of 0~20KHz, can realize output of physical parameter such as setting frequency, output frequency etc.
Analog output channel 2 channel of analog signal output, thereinto AO1 channel can be 4~20mA or 0~10V and AO2 channel is 0~10V; through them the inverter can realize output of physical parameter such as setting frequency, output frequency etc.
keypad LED display Can display setting frequency, output frequency, output voltage, output current etc.
Lock the button Lock all or part of the buttons(analog potentiometer can't be locked)
Protection function Over-current protection, over-voltage protection, lack-voltage protection, over-heat protection, over-load protection, etc.
Fitting parts brake subassembly, remote-control keypad, connecting cable for remote-control keypad etc.
Ambient Use ambient Indoor, not bare to sunlight, no dust, no corrosive gas, no flammable gas, no oil fog, no vapor, no water drop or salt etc.
Altitude Lower than 1000m, if higher than 1000m, need to reduce amount to use.
Ambient temperature -10ºC~+40ºC(under ambient temperature 40ºC ~50ºC, please reduce the volume or strengthen heat sink)
Ambient humidity Smaller than 95%RH, no condensation water
vibration Smaller than5.9m/s²(0.6g)
Storage temperature -40ºC~+70ºC
Configuration Defending grade IP20
Cooling mode By fan with automatic temperature control
Mounting mode Wall hanging

Application
EDS1000 series variable frequency drives are mainly used in woodworking machinery, stone machinery, mining machinery, printing machinery, packaging machinery, food machinery, textiles, chemicals, transport, wire and cable, ceramics, building materials, tobacco and other industrial applications.
