  4. HM Series Human Machine Interface

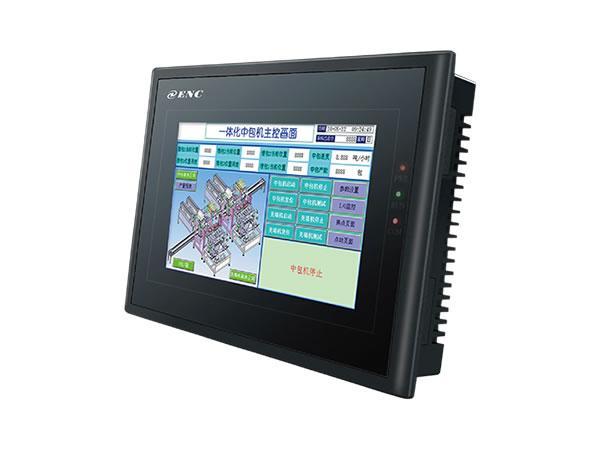

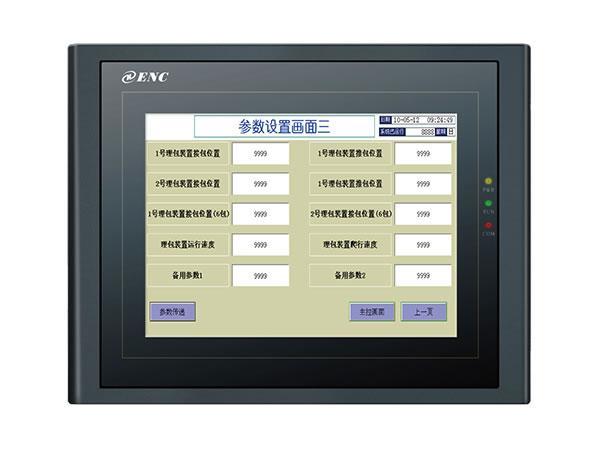

HM Series Human Machine Interface

  • HM Series Human Machine Interface
  • HM Series Human Machine Interface
  • HM Series Human Machine Interface

Application
HMI use for industrial automation in intelligent plant. It can not only provide plant data on the mobile device, and now HMI has been able to provide real-time data for the operator as well as the prediction can be put into action. So it bring the benefits to users, such as reducing plant operating costs, higher processing efficiency, higher energy efficiency, etc., which also speed up the use of human computer solutions.

Models: HM-035AE; HM-043AE; HM-043BE; HM-043BS; HM-050AE; HM-050AS; HM-070AE; HM-070AS; HM-070BE; HM-070BS; HM-102AE; HM-102AS

Parameters
Display Model HM-050AS HM-050AE HM-070AE; HM-070AS HM-070BE;HM-070BS
Size (in inches) 5"(W x H=16:9) 5"(W x H=16:9) 7"(W x H=16:9) 7"(W x H=16:9)
Resolution (W x H in pixels) 480x272 480x272 800x480 800x480
Touch Screen 4 threads and high precision touch screen
Display Colors 260,000 260,000 260,000 260,000
Back Light Module LED
Contrast Ratio 400:1 450:1 400:1 400:1
Brightness(cd/m)2 400cd/m2 400cd/m2 450cd/m2 450cd/m2
Product Features SD Card N/A N/A N/A Yes N/A Yes
RAM 128M FLASH+64M DDR 128M FLASH+64M DDR 128M FLASH+64M DDR 128M FLASH+64M DDR
CPU 32-bit 400MHz RISC 32-bit 400MHz RISC 32-bit 400MHz RISC 32-bit 400MHz RISC
Compatibility of FCC Meet the FCC， Class A Meet the FCC， Class A Meet the FCC， Class A Meet the FCC, Class A
High-Voltage Test 1000V AC,1 minutes 1000V AC,1 minutes 1000V AC,1 minutes 1000V AC, 1 minutes
CE Certificate Meet the standards
EN55022 & N55024 		Meet the standards
EN55022 & N55024 		Meet the standards
EN55022 & N55024 		Meet the standards
EN55022 & N55024
Degree of Protection IP65(Front Panel) IP65(Front Panel) IP65(Front Panel) IP65(Front Panel)
Shell Material Engineering Plastics
(ABS+PC) 		Engineering Plastics
(ABS+PC) 		Engineering Plastics
(ABS+PC) 		Engineering Plastics
(ABS+PC)
Power Source Power Supply DC24V(+/-15%) DC24V(+/-15%) DC24V(+/-15%) DC24V(+/-15%)
Interface Power Consumption 3w 3w 6w 6w
Serial Interface COM:RS232/422/485 COM:RS232/422/485 COM1:RS232/422/485;
COM2:RS232/422/485 		COM1:RS232/422/485;
COM2:RS232/422/485
USB Download Interface Yes Yes Yes Yes
U-disk Interface Yes Yes Yes Yes
Ethernet Interface Yes N/A N/A Yes N/A Yes
Ambient Operating Ambient Temperature - 20~ 65°C - 20~ 65°C - 20~ 65°C - 20~ 65°C
Operating Ambient Humidity 10~ 90%RH 10~ 90%RH 10~ 90%RH 10~ 90%RH
Degree of Anti-Vibratio 10-25Hz(XYZ direction
2G/30 minutes) 		10-25Hz(XYZ direction
2G/30 minutes) 		10-25Hz(XYZ direction
2G/30 minutes) 		10-25Hz(XYZ direction
2G/30 minutes)
Configuration Outer Size 165X103X39(mm) 165X103X39(mm) 227X153X40(mm) 203X145X40(mm)
Hole Size 157X95(mm) 210X144(mm) 192X138(mm)
Net Weight 0.8kg 0.8kg 1.5kg 1.5kg
