Equipment Introduction
Paper machinery can involve many different moving components that all need to be controlled by the power supply. Frequency inverters help these machines operate stably and efficiently.

Process Requirements
1. Adopt multi-segment electric motor drive, each gear assembly needs to maintain high accuracy synchronization.
2. Adjustable line speed system, the rotating speed(rpm) of each gear assembly can be adjusted separately
3. When the speed of gear assembly changes, the after gear assembly also changes

EDS1000 Frequency Inverter Transformation Feasibility Analysis

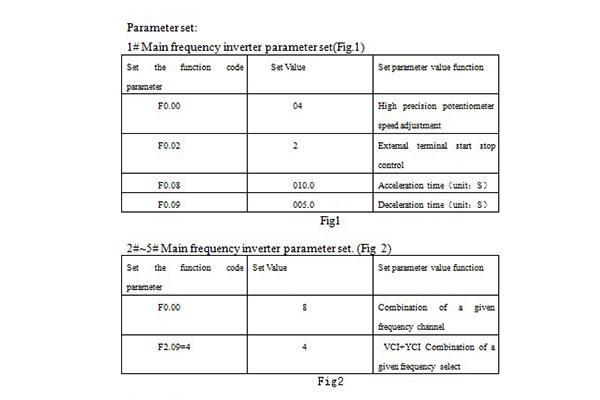

Adopting multi-turn precision potentiometer control, 1# unit as the preset of the system linear speed, the follow-up units use frequency combination preset method, the analog output of each unit accesses to the next unit of the analog input, using analog can fine-tune directly by inputting YCI.

Simple structure, safe and reliable, easy operation and maintenance.

For more details, please download the following document:
Paper machine applications PDF
