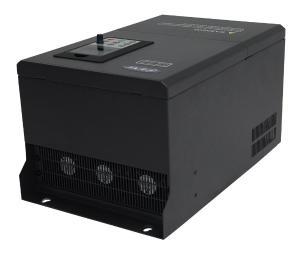

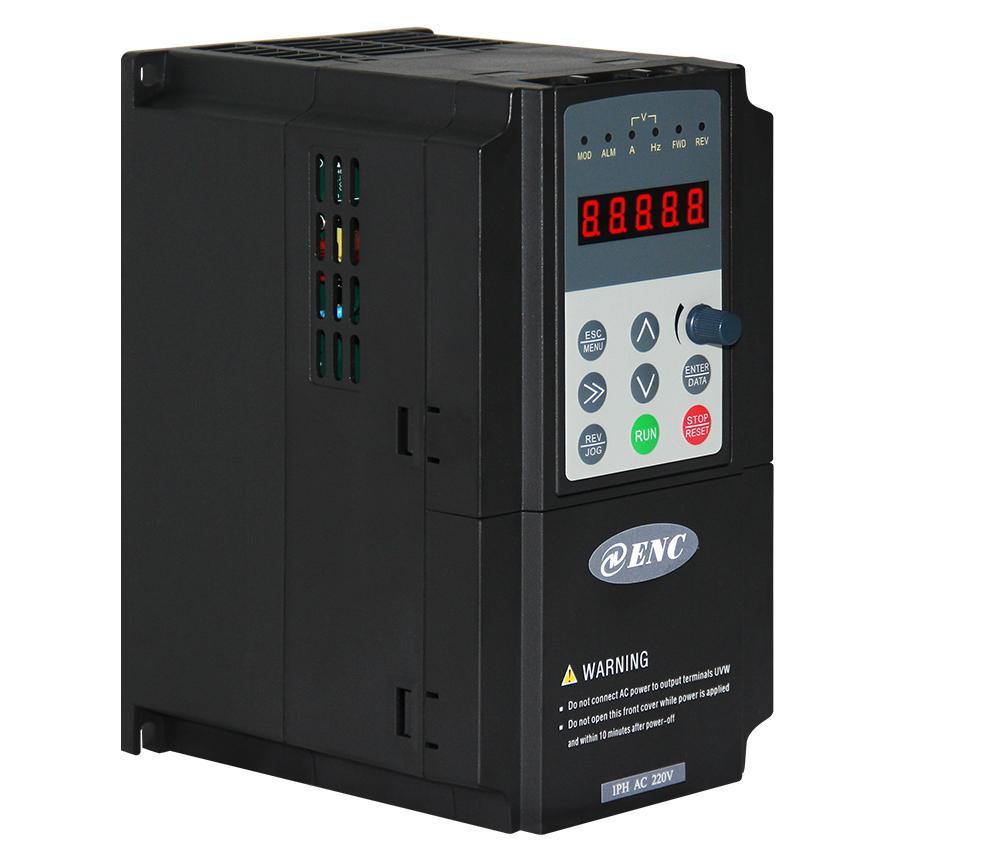

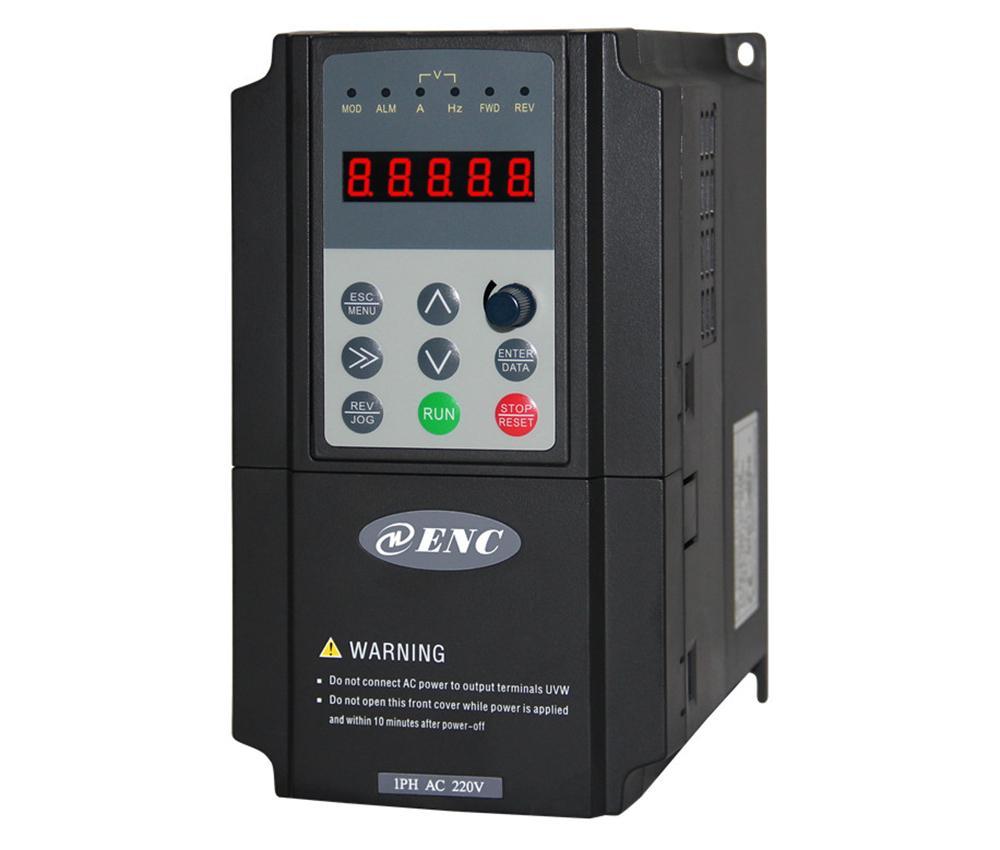

EN600 Flux Vector Variable Frequency Drive
Description

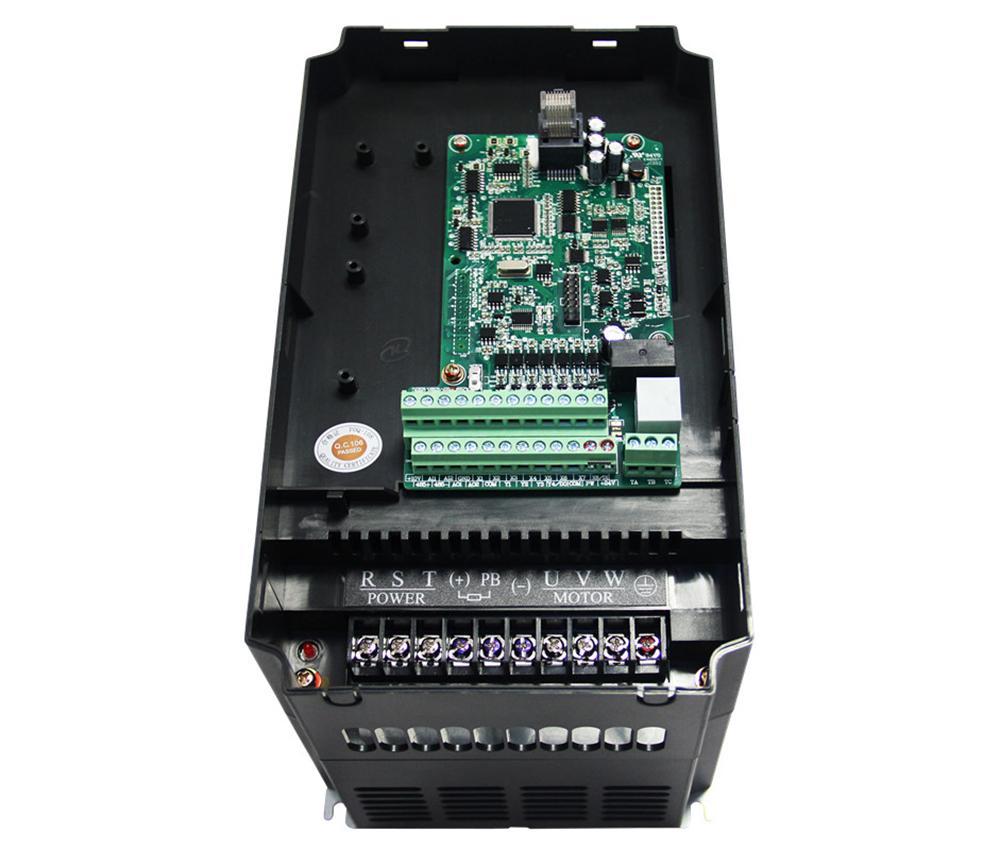

EN600 flux vector variable frequency drive uses the 32-bit DSP hardware platform. The VFD adopts advanced algorithm to support both velocity vector control and torque vector control, PG-enabled or sensorless, to regulate the impulse current swiftly.
Power range
220V single phase: 0.4KW-3.7KW
220V/380V/440V/480V three-phase: 0.75KW-55KW
Application
EN600 flux vector variable frequency drive is suitable for usage in metal tooling, plastic machinery, CNC machine tools, printing device, dying industry, paper manufacturing, public works, water supply projects and sewage disposal systems. Besides the VFD is also widely applied in textiles, refrigeration, cement and ceramics industries.
| Item | Item description | ||||
| Input | Rated volt.,frequency | 1 phase 220V ±15% | |||
| 3 phase 220V ±15% | |||||
| 3 phase 380V ±15% | |||||
| 3 phase 440V/480V ±15% | |||||
| Rated input frequency | 50/60Hz ±5% | ||||
| Output | Voltage | 0~supply voltage | |||
| Frequency | 0~600Hz | ||||
| Over loading capacity | G type:150% of rated current for 1 minute; P type:120% of rated current for 1 minute. |
||||
| Control Performance | Control mode | vector control, PG vector control, open-loop V/F control, torque control, PG torque control | |||
| Velocity control precision | ±0.5% rated synchronous speed (vector control); ±0.1% rated synchronous speed (PG vector control); ±1% rated synchronous speed (V/F control); |
||||
| Speed regulation range | 1: 2000 (PG vector control) ; 1: 100 (vector control); 1: 50 (V/F control); |
||||
| Start-up torque | 1.0Hz: 150% rated torque (V/F control); 0.5Hz: 150% rated torque (vector control); 0Hz: 180% rated torque (PG vector control); |
||||
| Speed fluctuation | ±0.3% rated synchronous speed (vector control); ±0.1% rated synchronous speed (PG vector control); |
||||
| Torque control precision | ±10% rated torque (vector control,torque control); ±5% rated torque (PG vector control,PG torque control). |
||||
| Torque response | ≤20ms (vector control); ≤10ms (PG vector control); |
||||
| Frequency precision | Digital setting: max. frequency×±0.01%; Analog setting: max. frequency×±0.5% |
||||
| Freq. resolution | Analog setting | 0.1% of max. frequency | |||
| Digital setting precision | 0.01Hz | ||||
| Exterior impulse | 0.1% of max. frequency | ||||
| Torque boost | Automatic torque boost; manual torque boost 0.1~12.0% | ||||
| V/F curve(volt. Frequency characteristic) | Setting rated frequency at the range of 5~650Hz,by choosing constant torque, degressive torque 1, degressive torque 2, degressive torque 3, self-defined V/F total 5 kinds of curve. | ||||
| Acceleration deceleration curve | Two modes: straight line acceleration and deceleration;S curve acceleration and deceleration; 15 kinds of acceleration and deceleration time,time unit (0.01s, 0.1s, 1s) for option ,max. time for 1000 minutes. | ||||
| Brake | Power consumption brake | EN600 3 phase 15KW & under power range with inbuilt brake unit,only add brake resistor between (+)and PB. 18.5KW & up power range is possible to add brake unit between (+)and (-)outside; or extra connect brake unit with adding brake resistor between (+)and PB. EN500 series can connect brake unit between (+)and (-)outside. | |||
| DC brake | Start, stop action for option, action frequency 0~15Hz,action current 0~100% of rated current,action time 0~30.0s | ||||
| Jog | Jog frequency range: 0Hz~up limit frequency;jog acceleration and deceleration time 0.1~6000.0 seconds for setting. | ||||
| Multi-section speed run | Realized by inbuilt PLC or control terminal; with 15 section speed, each section speed with separately acceleration and deceleration time; with inbuilt PLC can achieve reserve when power down. | ||||
| Inbuilt PID controller | Convenient to make closed-loop control system | ||||
| Automatic energy saving run | Optimize V/F curve automatically to achieve power saving run according to the load status. | ||||
| Automatic voltage regulate(AVR) | Automatically keep output voltage constant, when the power grid voltage fluctuation | ||||
| Automatic current limiting | Current limited automatically under run mode in avoid of inverter over-current frequently to trip. | ||||
| Carrier modulation | Modulate carrier wave automatically according to the load characteristic. | ||||
| Speed tracking restart | Make rotating motor smoothly start without shocking | ||||
| Running function | Running command specified channel | Keypad specified, control terminal specified, communication specified can switch through various means. | |||
| Running frequency specified channel | Main & auxiliary specified to a realize one main adjusting and one fine control. Digital specified, analog specified, pulse specified, pulse width specified, communication specified and others, which can be switched by many means at any time. | ||||
| Binding function | Run command channel and frequency specified channel can bind together randomly and switch synchronously | ||||
| Input output characteristic | Digital input channel | Channel 8 for universal digital input, max. Frequency 1KHz, channel 1 can be used as pulse input channel, max. Input 50KHz,which can be expanded to channel 14 . | |||
| Analog input channel | Channel 2 for analog input channel, AI1 can choose 4~20mA or 0~10V output,AI2 is differential input channel,4~20mA or -10~10V for option,which can be expanded to channel 4 analog input. | ||||
| Pulse output channel | 0.1~20KHz pulse square signal output to achieve setting frequency, output frequency and other physical quantity output. | ||||
| Analog output channel | Channel 2 for analog signal output, AO1 can choose 4~20mA or 0~10V,AO2 can choose 4~20mA or 0~10Vto achieve setting frequency, output frequency and other physical quantity output, which can be expanded to channel 4 analog output. | ||||
| Unique function | Rapid current limit | Limit inverter over current to the greatest point, and make it run more stably | |||
| Monopulse control | Suitable for working site where need one button to control inverter start and stop, first press to start, then press to stop, and that cycle repeats. It's very simple and reliable. | ||||
| Fixed length control | Realize fixed length control | ||||
| Timing control | Timing control function: setting time range 0.1Min ~ 6500.0Min | ||||
| Virtual terminal | Five group virtual input & output IO can realize simply logical control | ||||

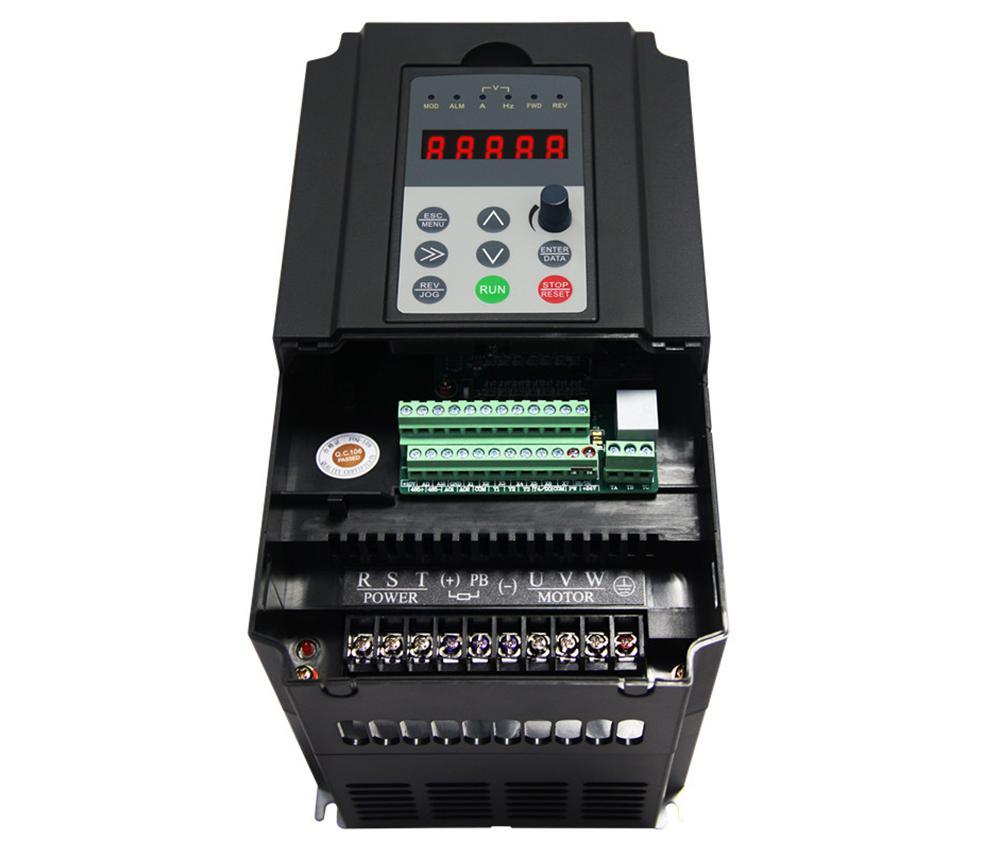

| Keypad | Keypad display | The parameters as setting frequency, output frequency, output voltage, output current can be displayed | |||
| Button locked | Lock all or part of the buttons | ||||
| Protection function | Motor power on Shot circuit test, input & output phase loss protection, over-current protection, over voltage protection, under voltage protection, over heat protection, overload protection, under load protection, relay absorption protection, terminal protection and no stop protection under power off. | ||||
| Environment | Application site | Indoor, not bare to sunlight, no dust, no corrosive gas, no flammable gas, no vapor, no water drop or salt etc. | |||
| Altitude | Under 1000 meter. (above 1000 meter require to reduce volume to use, output current reduce about 10% of rated current volt per 1000 meter high) | ||||
| Environment temperature | -10℃~+40℃ ( environment temperature between 40℃~50℃, need to reduce volume or strengthen heat sink ) | ||||
| Environment humidity | Smaller than 95%RH,no drop condenses | ||||
| Vibration | Smaller than 5.9 M/S²(0.6g) | ||||
| Storage temperature | -40℃~+70℃ | ||||
| Structure | Protection grade | IP20 | |||

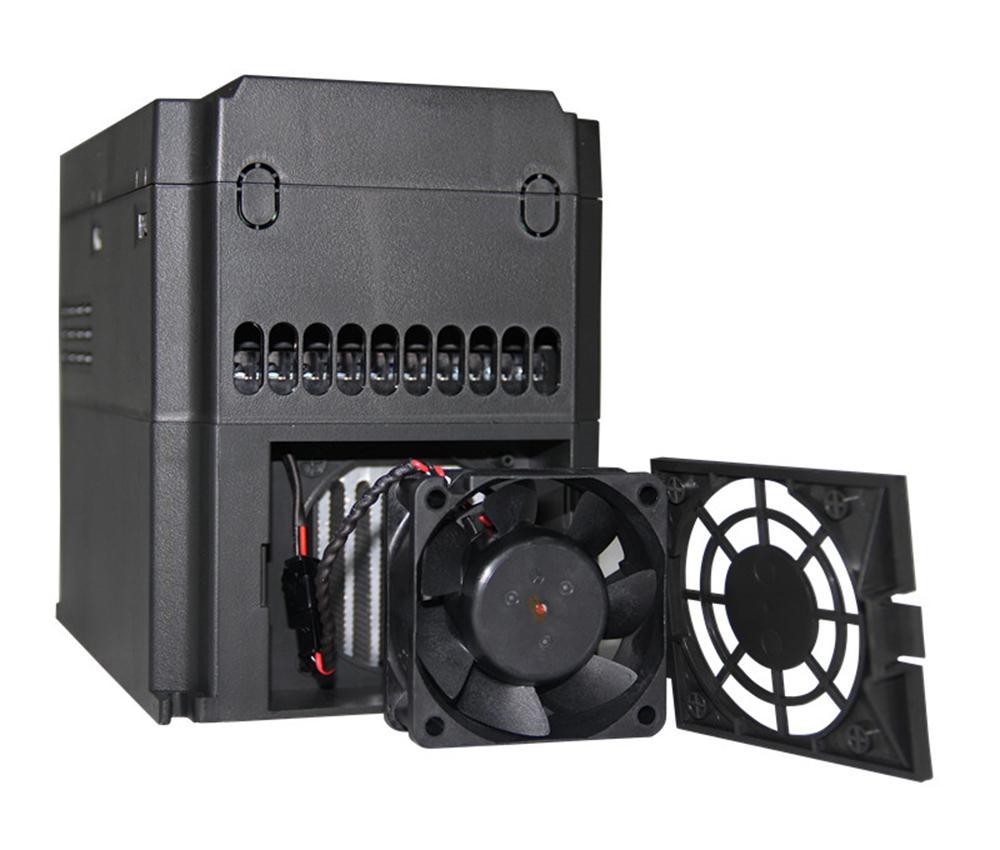

| Cooling mode | Forced air cooling and natural | ||||
| Installation mode | Wall hanging and cabinet installation | ||||
| Input Voltage | Inverter type | Rated output Current(A) | Adaptable motor (KW) | Packing size(cm) | G.W.(KG) |
| 1 phase 220V | EN600-2S0004 | 2.5 | 0.4 | 26*17*22 | 2.5 |
| EN600-2S0007 | 4 | 0.75 | 26*17*22 | 2.5 | |
| EN600-2S0015 | 7 | 1.5 | 26*17*22 | 2.5 | |
| EN600-2S0022 | 10 | 2.2 | 26*17*22 | 2.5 | |
| EN600-2S0037 | 15 | 3.7 | 30*21*25 | 4 | |
| 3 phase 380V | EN600-4T0007G/0015P | 2.3/3.7 | 0.75/1.5 | 26*17*22 | 2.5 |
| EN600-4T0015G/0022P | 3.7/5 | 1.5/2.2 | 26*17*22 | 2.5 | |
| EN600-4T0022G/0037P | 5/8.5 | 2.2/3.7 | 26*17*22 | 2.5 | |
| EN600-4T0037G/0055P | 8.5 | 3.7 | 26*17*22 | 2.5 | |
| EN600-4T0055G/0075P | 13/17 | 5.5/7.5 | 30*21*25 | 4 | |
| EN600-4T0075G/0110P | 17/25 | 7.5/11 | 30*21*25 | 4 | |
| EN600-4T0110G/0150P | 25/33 | 11/15 | 38*26*29 | 5.5 | |
| EN600-4T0150G/0185P | 33/39 | 15/18.5 | 38*26*29 | 5.5 | |
| EN600-4T0185G/0220P | 39/45 | 18.5/22 | 49*33.5*29 | 13.5 | |
| EN600-4T0220G/0300P | 45/60 | 22/30 | 49*33.5*29 | 13.5 | |
| EN600-4T0300G/0370P | 60/75 | 30/37 | 53*36*32 | 18.5 | |
| EN600-4T0370G/0450P | 75/91 | 37/45 | 53*36*32 | 18.5 | |
| EN600-4T0450G/0550P | 91/112 | 45/55 | 62*38.5*36 | 29.0 | |
| EN600-4T0550G/0750P | 112/150 | 55/75 | 62*38.5*36 | 29.0 |
Feature
1. Variable control mode: The control modes of EN600 flux vector variable frequency drive cover sensorless vector control, close-loop control, optimized V/F control, and support both velocity and torque vector control.
2. Outstanding performance: EN600 flux vector variable frequency drive applies to itself great flux vector control algorithm to achieve high control precision, rapid response and awesome low-frequency characteristics, including a ±0.5% fluctuation from working synchronous speed under sensorless control; the fluctuation is ±0.1% under PG control and ±1% under V/F control.

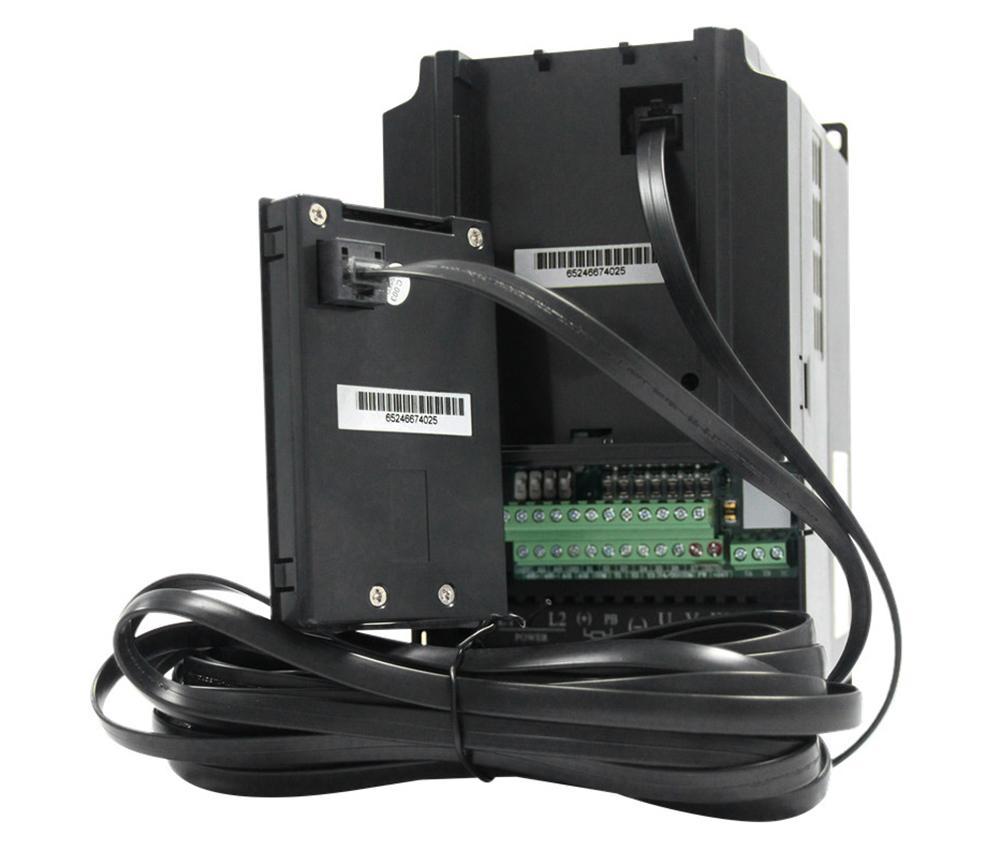

3. Strong functionality: EN600 flux vector variable frequency drive accepts a variety of protocols including CANOpen, CANLink, Profibus, Modubus and Free protocols. The VFD supports local single/double display LED panels as well as local and remote LCD panels.
4. Solid security: EN600 flux vector variable frequency drive equips extensive intelligent protection and detection functionality, including protections against input/output phase loss, inter-phase short circuits or short-to-ground faults. The VFD also supports a large number of extensions, such as bus extension, terminal extension, relay extension and analog signal extension.
