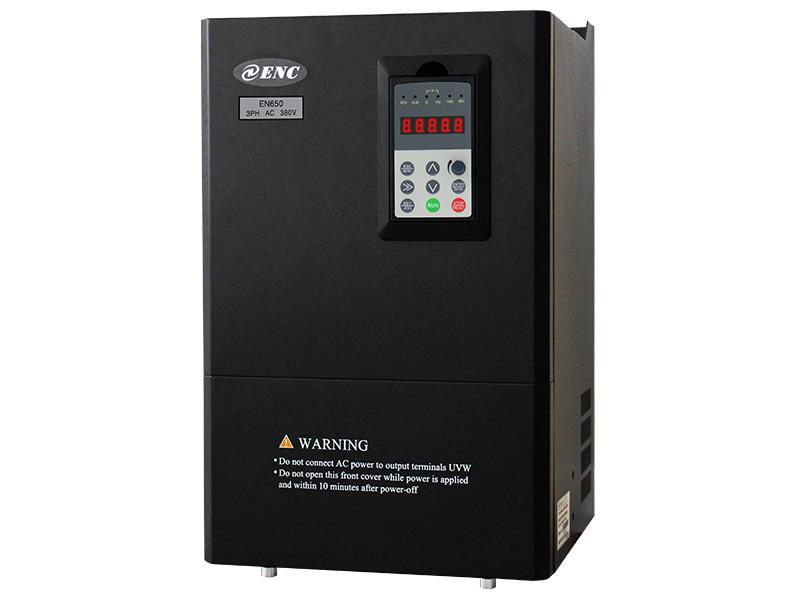

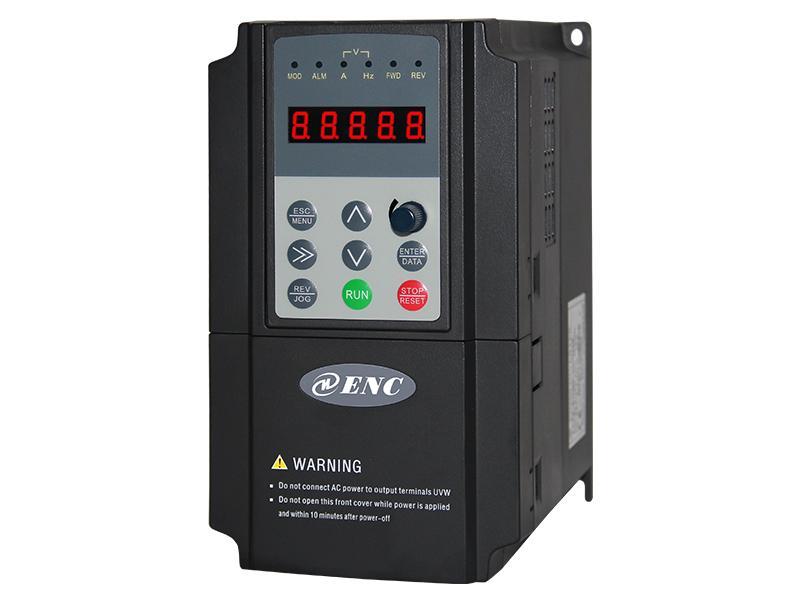

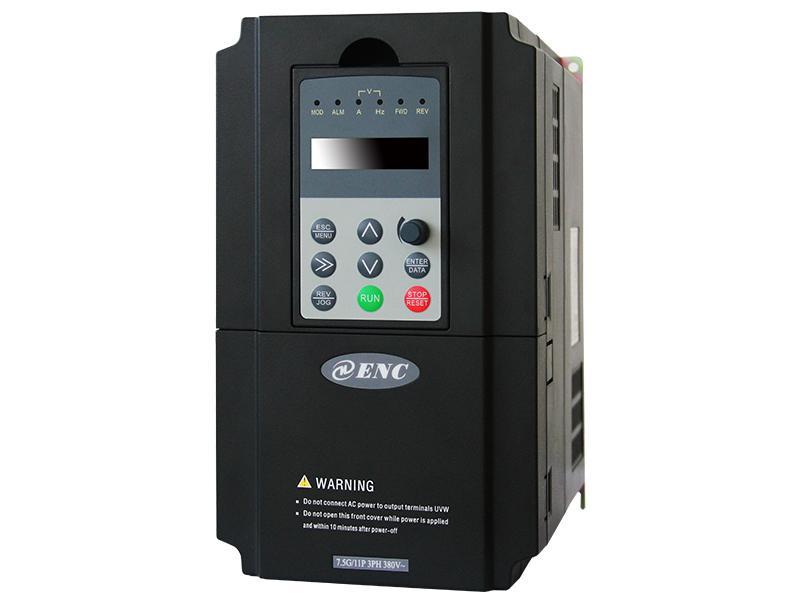

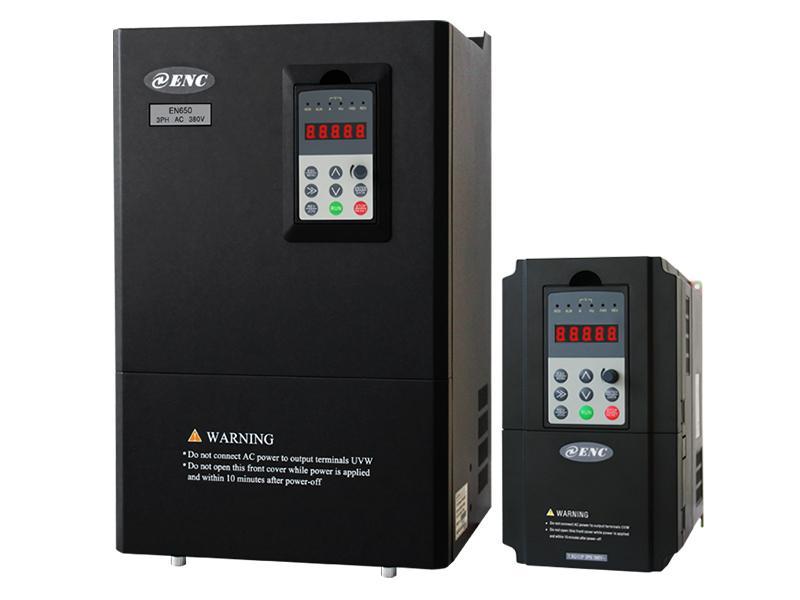

EN650 Permanent Magnet Synchronous Motor Variable Frequency Drive
Description
EN650 permanent magnet synchronous motor variable frequency drive adopts 32-bit DSP hardware platform to achieve large torque, high precision and broad speed range motor regulation. The VFD supports sensorless and sensor-aware vector control and has large low-frequency torque. The variable frequency drive is not sensitive towards motors’ parameters, nor is it reliant on changes of parameters. The VFD features strong stability against ambient temperature changes and quick and stable response upon high-speed halting.
Power range
380V three-phase: 5.5KW-55KW
Application
EN650 permanent magnet synchronous motor variable frequency drive is applied in refrigeration compressors, air compressors, new energy automobile motors, packing machinery and other industries.
| Item | Item description | ||
| Input | Rating volt., frequency | 3 phase 380V 50Hz/60Hz | |
| Rating volt., frequency | 320V~460V | ||
| output | Voltage | 0~380V | |
| Frequency | 0Hz-600Hz | ||
| Over loading capacity | Permanent magnet synchronous motor, asynchronous motor | ||
| Control Performance |
Motor type | 150% of rating current for 1 minute, 180% of rating current for 1 second; |
|
| Control mode | synchronous motor: without PG vector control, PG vector control asynchronous motor :without PG vector control, open-loop V/F control |
||
| Speed regulation range | synchronous motor :1:20(without PG vector control ), 1:1000 (PG vector control) asynchronous motor :1:100 (without PG vector control) |
||
| Start-up torque | synchronous motor : 2.5Hz:150% of rating torque (without PG vector control) 0Hz:180% of rating torque ( PG vector control) asynchronous motor: 0.5Hz:150% of rating torque (without PG vector control) |
||
| Torque control precision | ±10% | ||
| Running speed control precision | synchronous motor : ≤±0.3% of rating synchronous speed (without PG vector control) ≤±0.03% of rating synchronous speed ( PG vector control) asynchronous motor: ≤±0.5% of rating synchronous speed (without PG vector control) |
||
| Speed fluctuation | synchronous motor : ≤±0.3% of rating synchronous speed (without PG vector control) ≤±0.05% of rating synchronous speed ( PG vector control) asynchronous motor: ≤±0.3% of rating synchronous speed (without PG vector control) |
||
| Frequency precision | Digital setting: max. frequency×±0.01%; analog setting: max.frequency×±0.5% |
||
| Frequency resolution |
Analog setting | 0.1% of max. frequency | |
| Digital setting | < 100 Hz: 0.01Hz | ||
| Exterior pulse | 0.1% of max. frequency | ||
| Torque boost | Automatic torque boost, manual torque boost 0.1%~12.0% | ||
| V/F curve (volt. Frequency characteristic) | Set rating frequency randomly at range of 5~600Hz, can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3,user-defined V/F in total 5 kinds of curve | ||
| Accelerating decelerating curve | 2 modes: straight line accelerating decelerating and S curve accelerating decelerating; 15 kinds of accelerating decelerating time, time unit (0.01s,0.1s,1s)can be optioned, max. time 1000 minutes. |
||
| Brake | Power consumption brake | If necessary, can add brake resistor between (+)and PB | |
| DC brake | Optional start-up and stop, action frequency 0~15Hz, action current 0~100% rating current, action time 0~30s |
||
| Jog | Jog frequency range: 0Hz~up limit frequency ; jog accelerating decelerating time 0.1~6000.0s can be set |
||
| Multisection speed running | Realized by interior PLC or control terminal; with 15 section speed, each section speed with separately acceleration and deceleration time; with inbuilt PLC can achieve reserve when power down. |
||
| Interior PID controller | Be convenient to make closed-loop system | ||
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | ||
| Automatic volt. regulation (AVR) | Can keep constant output volt. When power source voltage varies. | ||
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | ||
| Carrier modulation | Modulate carrier wave automatically according to the load characteristic. | ||
| Speed tracking restart | Make rotating motor smoothly start without shocking | ||
| Input Voltage | Inverter type | Rated output Current(A) | Adaptable motor (KW) |
| 3 phase 380V | EN650-4T0055 | 13 | 5.5 |
| EN650-4T0075 | 17 | 7.5 | |
| EN650-4T0110 | 25 | 11 | |
| EN650-4T0150 | 33 | 15 | |
| EN650-4T0185 | 39 | 18.5 | |
| EN650-4T0220 | 45 | 22 | |
| EN650-4T0300 | 60 | 30 | |
| EN650-4T0370 | 75 | 37 | |
| EN650-4T0450 | 91 | 45 | |
| EN650-4T0550 | 112 | 55 |
Feature
1. Great low-frequency torque: EN650 permanent magnet synchronous motor variable frequency drive has the capability of outputting 150% working torque at 2.5Hz under open-loop vector mode.
2. High precision at steady state: EN650 permanent magnet synchronous motor variable frequency drive features a less than ±0.3% fluctuation from of output speed from input speed signals.
3. Rapid dynamic response: EN650 permanent magnet synchronous motor variable frequency drive supports rapid and stable response to high-speed halting, with acceleration/deceleration duration under maximum frequency reaching 0.1 second. The VFD manages to swiftly self-adapt and contain sudden load changes or instant acceleration/deceleration, so that overcurrent warning becomes a scarce case.
4. Excellent robustness: EN650 permanent magnet synchronous motor variable frequency drive is not sensitive towards motors’ parameters, nor is it reliant on changes of parameters. Consequently The VFD features strong stability against ambient temperature changes.
5. Convenient installing and tuning: EN650 permanent magnet synchronous motor variable frequency drive can automatically learn the internal motor parameters required for vector control. The standard configuration of the VFD contains a RS485 communication interface and supports Modbus and free protocol; Profibus, CanLink and CanOpen can be optionally configured and supported to fulfill all levels of net communication requirements of the bus. Multiple frequency levels are provided given channels and methods.
Encom is a leading synchronous motor variable frequency drive manufacturer and supplier, we focus on developing industrial control products and provide automated control solutions for customers. Variable frequency drive is abbreviated as VFD, also called as frequency inverter or frequency converter. With rich experienced and professional engineer team, we are offering quality synchronous motor VFDs, servo drives and programmable logic controllers to be used in your machines.
