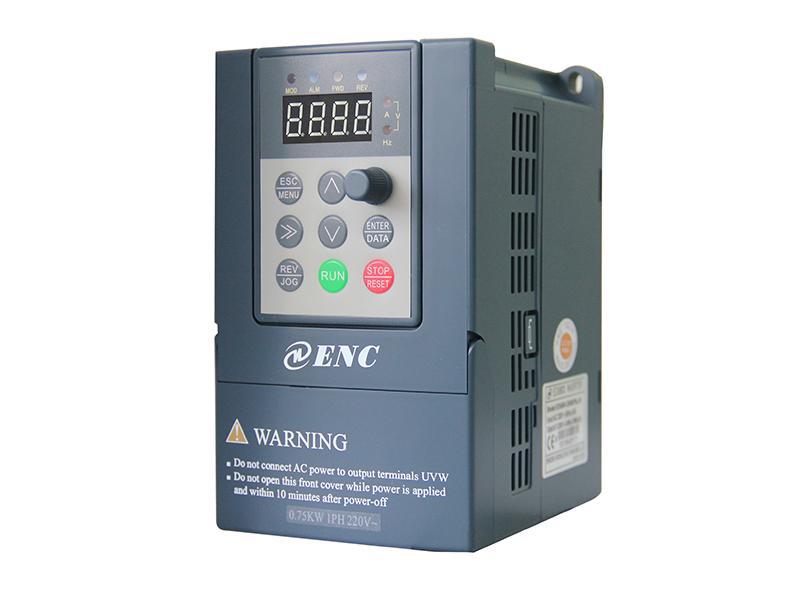

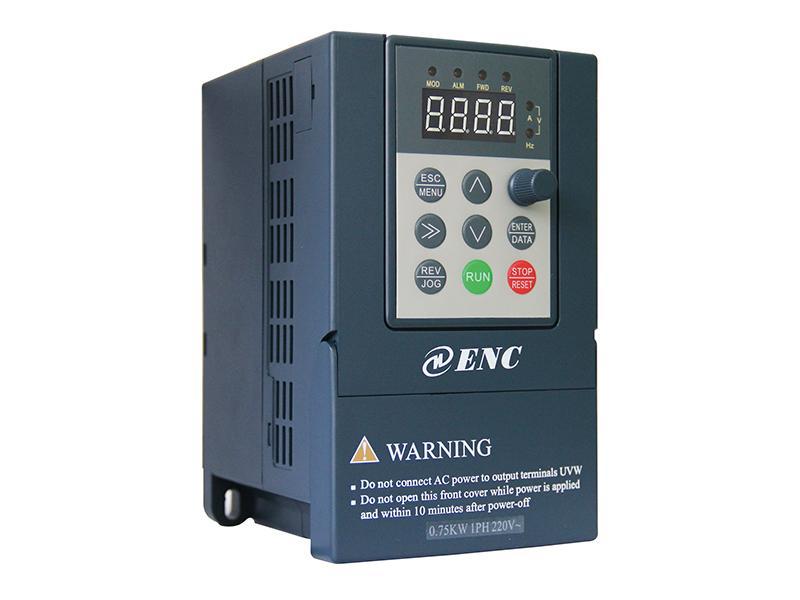

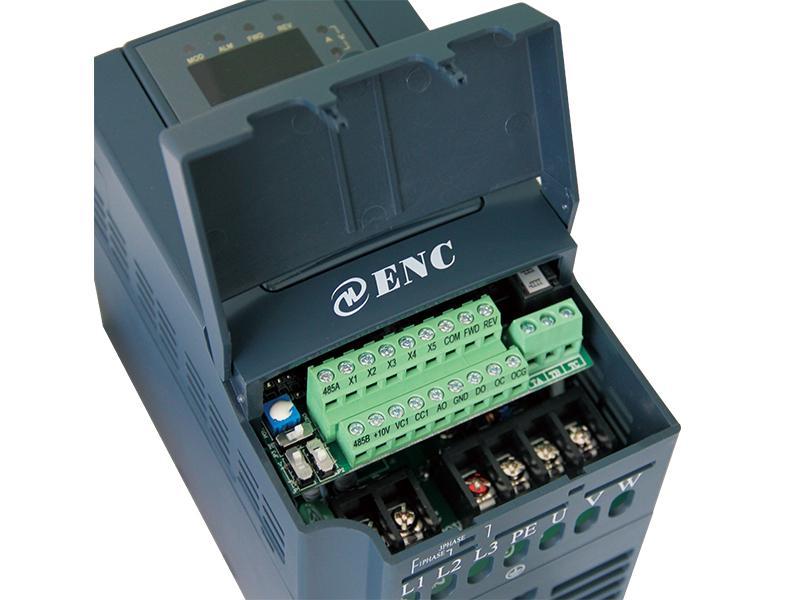

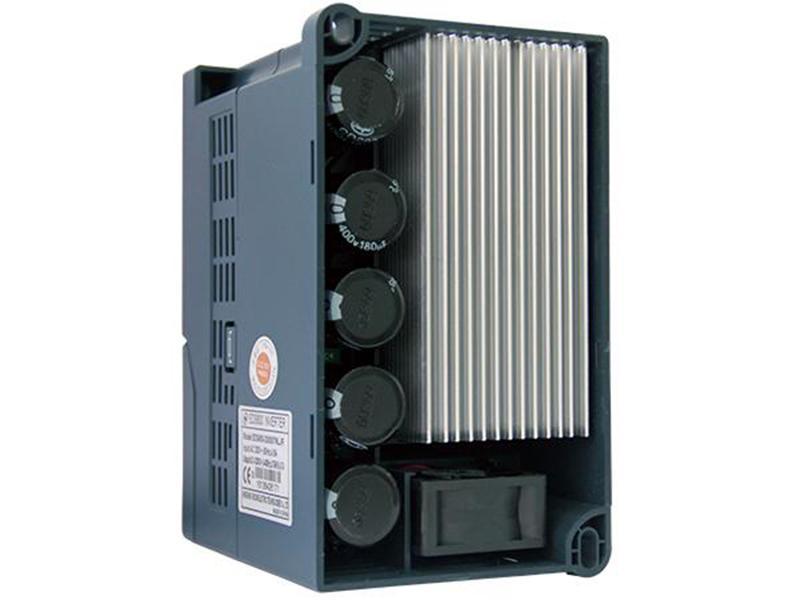

EN630 mini flux vector variable frequency drive uses the 32-bit DSP hardware platform, has a built-in PG card, and can achieve PG close-loop vector control through directing encoder to terminals. The VFD adopts advanced algorithm to support both velocity vector control and torque vector control, and consequently achieves high control precision, rapid response, excellent low-frequency characteristics and complete intelligent fault detection and protection functionality. The keypad of the variable frequency drive supports DCP speed controlling and copying functionality.
220V single phase: 0.4KW-1.5KW
380V three-phase: 0.75KW-1.5KW
EN630 mini flux vector variable frequency drive can be widely used in food processing, machinery manufacturing, wire drawing machinery, printing machinery, textile industry machinery, cement processing, ceramics; it can also be applied as mini-watt drives in industrial controlling, such as in medical devices and metal tooling.
|Input||Rated volt, frequency|| 1 phase 220 volt. level: 1 phase 220V , 50Hz/60Hz
3 phase 380 volt. level : 3 phase 380V , 50Hz/60Hz
|Allowed volt. range|| 1 phase 220 volt. level: 200 ~ 260V
3 phase 380 volt. level : 320 ~ 460V
|Output||Voltage||0 ~ 380V|
|Frequency||0 ~ 600Hz|
|Overload capacity||150% of rated current for 1 minute|
|Control performance||Control mode||Vector control (Without PG) Vector control (with PG) Open-loop V/F control Torque control (without PG) Torque control (with PG)|
|Speed control accuracy|| ±0.5% rated synchronous speed ( without PG vector control) ;
±0.1% rated synchronous speed ( with PG vector control) ;
±1% rated synchronous speed ( V/F control );
|Speed regulation range|| 1 : 2000 ( with PG vector control );
1 : 100 ( without PG vector control );
1 : 50 ( V/F control );
|Start-up torque|| 1.0Hz : 150% rated torque ( V/F control );
0.5Hz : 150% rated torque(without PG vector control) ;
0Hz : 180% rated torque ( with PG vector control );
|Speed fluctuation|| ±0.3% rated synchronous speed ( without PG vector control );
±0.1% rated synchronous speed ( with PG vector control );;
|Torque control accuracy|| ±10% rated torque ( without PG vector control , without PG torque control );
±5% rated torque ( with PG vector control, with PG torque control )。
|Torque response|| ≤20ms ( without PG vector control );
≤10ms ( with PG vector control );
|Frequency precision|| Digital setting: max. frequency×±0.01% ;
Analog setting: max. frequency×±0.5%
|Frequency resolution||Analog setting||0.1% of max. frequency|
|Digital setting precision||0.01Hz|
|Exterior impulse||0.1% of max. frequency|
|Torque boost||Automatic torque boost, manual torque boost 0.1 ~ 12.0%|
|V/F curve(volt. frequency characteristic)||Setting rated frequency arbitrarily at range of 5 ~ 650Hz,can choose constant torque, decreasing torque1, decreasing torque 2, decreasing torque 3,self-defined V/F curve in total 5 kinds of curve|
|Acceleration And Deceleration curves||Two modes: straight line acceleration and deceleration, "S" curve acceleration and deceleration; 15 types of acceleration and deceleration time, the time unit is optional(0.01s,0.1s,1s), max is 1000 minutes|
|Brake||Power consumption brake||With built-in brake unit, brake resistor added between (+) and PB|
|DC brake||Start-up and stop action optional, action frequency 0 ~ 15Hz,action current 0 ~ 100% of rated current, action time 0 ~ 30.0s|
|Input Voltage||Inverter type||Rated output Current(A)||Adaptable motor (KW)||Packing size(cm)||G.W.(KG)|
|1 phase 220V||EN630-2S0004||2.5||0.4||19*12.5*16||1.5|
|3 phase 380V||EN630-4T0007||2.3||0.75||19*12.5*16||1.5|
1. User customization of V/F curves.
2. Keypad copy function.
3. Breakdown detection of encoder and pressure gauge.
4. Built-in PID controller.
5. Frequency configuration of multiple channels.
6. Programmable I/O terminals.
7. Hopping frequency configuration to suppress mechanical resonance.
8. Non-stop execution that survives instant power breakdown.
9. Automatic voltage regulation.
10. Complete intelligent protection including that against overload and underload droop speed control.
11. Speed tracking restart.
12. Built-in PG card.
EN630 Manual PDF
